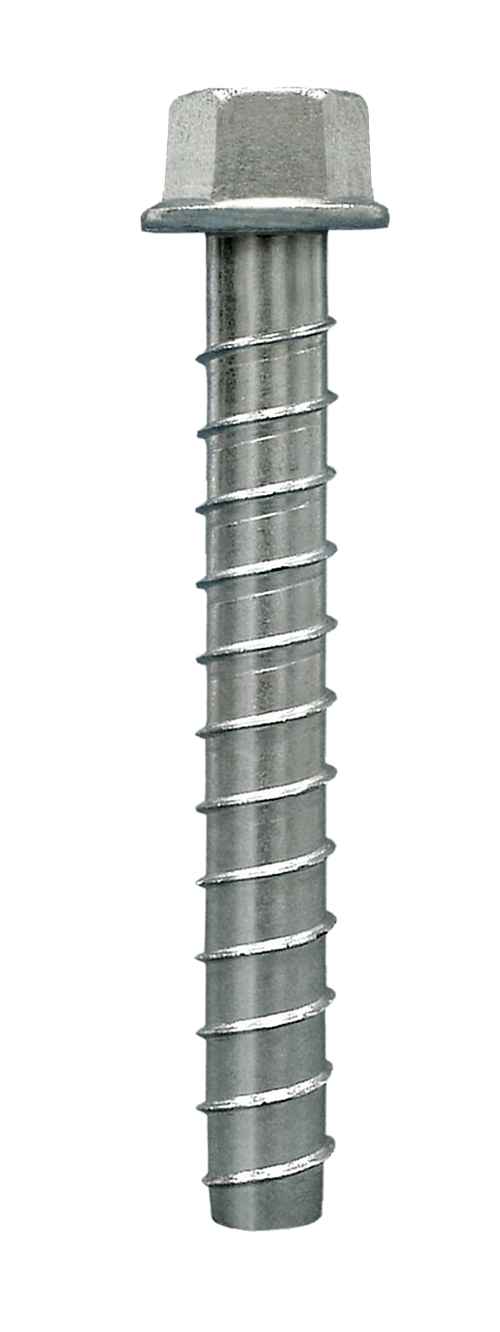

Titen HD®Heavy-Duty Screw Anchor

Product Details
A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove when used in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.

The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. See Stainless-Steel Titen HD for more information.

Key Features

• Tested in accordance with ACI 355.2, AC193 and AC106

• Qualified for static, wind and seismic loading conditions

• Thread design undercuts to efficiently transfer the load to the base material

• Standard fractional sizes

• Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility

• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits

• Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance

• Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved

• Use in dry interior environments only

Material

• Carbon steel


Finish

• Zinc plated
• Not recommended for permanent exterior use or highly corrosive environments
